Máy Cắt Vải Tự Động

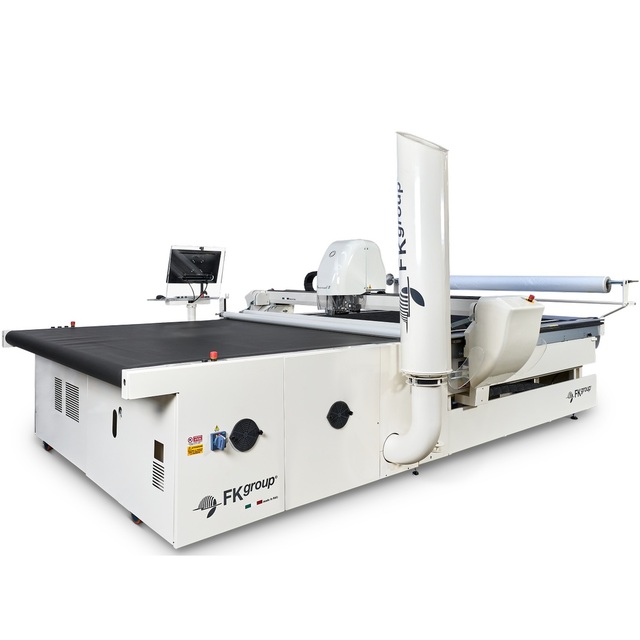

Máy Cắt Vải Tự Động FKgroup - Model Universal
Mã sản phẩm: FK-UNI
Giá: 240.000 VNĐ
Thêm vào giỏ hàng
Chi tiết

Automatic conveyor cutting system offering the choice of 6-8-9cm cutting head for all types of production.

Universal is a new project capable of accelerating working cycles through both speed and productivity, applying a mix of technical characteristics and innovative materials enabling to reach cutting performances never achieved before.

  • JUST CUT: the simple and intuitive Software makes all cutting parameters setting fast and safe;
  • Eco Power vacuum system guaranteees considerable power saving;
  • Patented high speed sharpening system: longlife sharpeners;
  • Fast Revolution: allows cutting flexibility for all material types;
  • Mectronics Blade Sense: automatic knife deflection correction;
  • Blade lubrication or cooling system;
  • Remote technical assistance, also via web, ensuring just in time total and constant support;
  • No Stop Cutting system involving two alternative methods: Continuous Cutting software to enhance cutting while advancing, Quick Release Vacuum suitable for high ply cutting (optional).

Working area (cm)

180x170 200 x 170 220 x 170 180 x 240 200 x 240 220 x 240
Overall dimensions
L x W x H (cm)
470 x 290
x 220
470 x 310
x 220
470 x 330
x 220
592,3 x 290
x 220
592,3 x 310
x 220
592,3 x 330
x 220
Weight (Kg) 2880 2960 3040 3220 3300 3380
Installed Power (kW) 15
Average Consumption (kW) 5,9 5,9 5,9 6,3 6,3 6,3
Power supply Tension 400V±10%
Max compressed lay height (cm) 6-8-9
