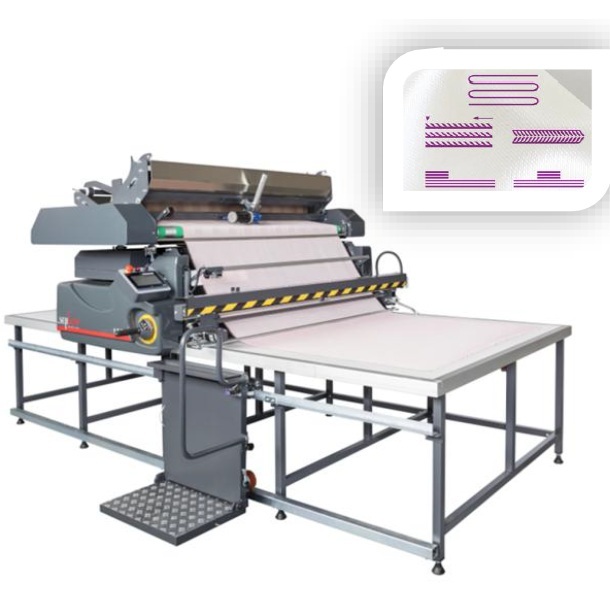

MNT1 MINI TURNTABLE
FULLY AUTOMATIC TURN TABLE FABRIC SPREADING MACHINE
CERTAIN SPREADING MODES SUPPORTED WEIGHTING UP TO 80 KGS (176 LBS) WITH TURNTABLE
√ It can be used for light fabrics
√ Face up or face down, Face to face with or without end catchers,
Face to face one way, Multi length spreading Modes available
LCD TOUCH SCREEN DISPLAY WITH PLC UNIT
√ Simplified graphical display that is easy to learn and easy to train new operators
√ Stores 50 different fabric set up files for quick retrieval to accelerate future spreading jobs
√ Available in Turkish, English and any other foreign languages if requested
MULTI FUNCTION THROTTLE ENABLES THE OPERATOR TO CONTROL
√ Threading/Rewinding of fabric
√ Start/Stop of spreading with one hand
OPERATOR PLATFORM
√ Allows operator to ride alongside the table
CRADLE FEED SYSTEM PROVIDES
√ Tension-free spreading even difficult fabrics
√ Electric cradle tilts for easy fabric roll loading/unloading
√ Eliminates use of a fabric roll bar
SYSTEM FEATURES
√ Electronic edge control responsive to variable speed
√ Automatic stop with safety sensors in case of emergency
√ Multi length spreading modes
√ Automatic pre-centering of material begining during threading
√ Variable speed control at forward/backward turns «Save Time»
√ No cloth stop function
√ Ply counter
√ Programmable lay length and end allowance settings
√ Four-wheel drive with wheels
√ Turntable provides automatic rewinding, threading and positioning of material
STANDARD ATTACHMENTS
√ Automatic cutting device
√ Movable catcher

OPTIONAL FEATURES
√ Tray for flat folded material up to 50 kgs
√ Zigzag eguipment & Fixed catcher
√ Antistatic Brush (Protection against electrostatic charge)
√ Paperstand for one roll of Underlay paper
